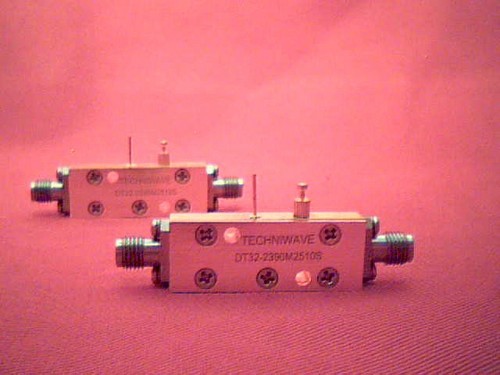

Control components

Phase shifter is a 2-port network which could change the output phase according to the outer analog command. There are many circuits for phase shifter which can be divided by control type into digital phase shifter and continuously adjustable phase shifter that can turn out to be digital phase shifter after numeralization on the tuning voltage； or by the working mode into switching line phase shifter and load line phase shifter。
The 2 modes have their own advantages and disadvantages respectively.The phase of switching line phase shifter is dispersible which means there is a linear relationship between the Dephasing and frequency but the insertion loss varies little at different phase while the load line phase shifter is the contrary

Dispersible Routing Phase Shifter





Frequency

(GHz)

Minimum

Dephasing

I.L (dB)

(Max)

VSWR

(Max)

Total

Dephasing

No Damage Power

Outline

Code

0.5-1

11.25°

2.5

1.5

360°

1w





Contact Techniwave

1-2

11.25°

2.5

1.5

360°

1w

2-4

11.25°

3

1.5

360°

1w

4-8

11.25°

5

1.6

360°

1w

8-12

11.25°

7

2

360°

1w

12-18

11.25°

10

2.2

360°

1w



Nondispersible Phase Shifter





Center Frequency

(GHz)

Relative Bandwidth

Minimum

Dephasing

I.L (dB)

(Max)

VSWR

(Max)

Total

Dephasing

No Damage Power

Outline

Code

0.5-1

≤20%

11.25°

2.5

1.5

360°

1w



Contact Techniwave

1-2

≤20%

11.25°

2.5

1.5

360°

1w

2-4

≤20%

11.25°

3

1.5

360°

1w

4-8

≤20%

11.25°

4.5

1.6

360°

1w



Techniwave’s PIN diode switch covers frequency from 20MHz to 20 GHz, with more than 20 throws and up to 110dB isolation. Based on years of experience, we lately developed Mini-sized High-speed Switch.

Features:

Miniature size
High speed
Excellent performance
TTL control or encoding control
High quality stainless steel removable connectors
Special protection design for TTL driver against voltage overshoot



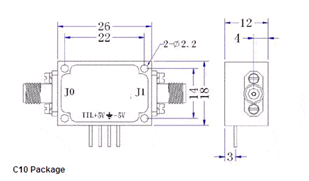

SPST

- Reflective Type



Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
( ns)

Power Handling

TW3108-C10

0.5-1

1.4

1.45

80

200

0.2

TW3109-C10

1-2

0.9

1.45

80

50

0.2

TW3110-C10

2-4

1.3

1.45

80

50

0.2

TW3111-C10

4-8

1.6

1.55

60

50

0.2

TW3112-C10

8-12

1.8

1.7

60

50

0.2

TW3113-C10

12-18

2.3

2

60

50

0.2

TW3114-C10

2-18

2.3

2

60

50

0.2





- Absorbtive Type



Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
( ns)

Power Handling

TW3115-C10

0.5-1

1.6

1.45

80

200

0.2

TW3116-C10

1-2

1

1.45

80

50

0.2

TW3117-C10

2-4

1.7

1.45

80

50

0.2

TW3118-C10

4-8

1.9

1.6

60

50

0.2

TW3119-C10

8-12

2.6

1.7

60

50

0.2

TW3120-C10

12-18

3.3

1.9

60

50

0.2

TW3121-C10

2-18

3.3

2

60

50

0.2

For more information: contact us

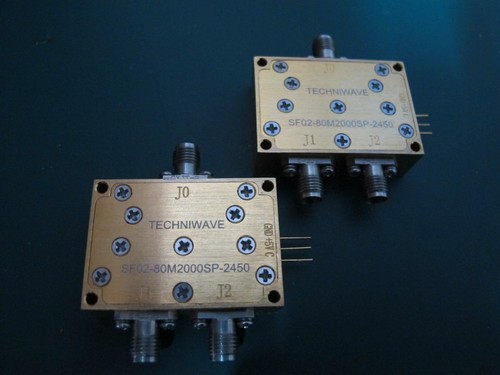

SP2T

- Reflective Type

Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
( ns)

Power Handling

TW3122-C11

0.5-1

1.4

1.45

80

200

0.2

TW3123-C11

1-2

1

1.45

80

50

0.2

TW3124-C11

2-4

1.4

1.45

80

50

0.2

TW3125-C11

4-8

1.7

1.5

60

50

0.2

TW3126-C11

8-12

2

1.6

60

50

0.2

TW3127-C11

12-18

2.5

1.9

60

50

0.2

TW3128-C11

2-18

2.6

2

60

50

0.2



Absorbtive Type

Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
(ns)

Power Handling

TW3129-C11

0.5-1

1.6

1.45

80

200

0.2

TW3130-C11

1-2

1

1.45

80

50

0.2

TW3131-C11

2-4

1.7

1.45

80

50

0.2

TW3132-C11

4-8

2

1.5

60

50

0.2

TW3133-C11

8-12

2.7

1.6

60

50

0.2

TW3134-C11

12-18

3.3

1.9

60

50

0.2

TW3135-C11

2-18

3.3

2

60

50

0.2

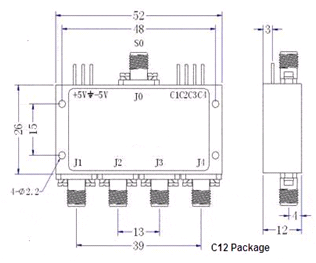

SP4T

- Reflective Type

Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
(ns)

Power Handling

TW3136-C12

0.5-1

1.6

1.5

80

200

0.2

TW3137-C12

1-2

1.3

1.5

80

50

0.2

TW3138-C12

2-4

1.5

1.5

80

50

0.2

TW3139-C12

4-8

1.9

1.5

60

50

0.2

TW3140-C12

8-12

2

1.7

60

50

0.2

TW3141-C12

12-18

2.9

2

60

50

0.2

TW3142-C12

2-18

2.9

2

60

50

0.2

For more information: contact us

Absorbtive Type

Part Number

Freq.range
(GHz)

Insertion Loss
(dB)

VSWR

Isolation
(dB)

Switching Speed
(ns)

Power Handling

TW3143-C12

0.5-1

1.6

1.5

80

200

0.2

TW3144-C12

1-2

1.3

1.5

80

50

0.2

TW3145-C12

2-4

1.5

1.5

80

50

0.2

TW3146-C12

4-8

1.9

1.5

60

50

0.2

TW3147-C12

8-12

2

1.7

60

50

0.2

TW3148-C12

12-18

2.9

2

60

50

0.2

TW3149-C12

2-18

2.9

2

60

50

0.2

For more information: contact us

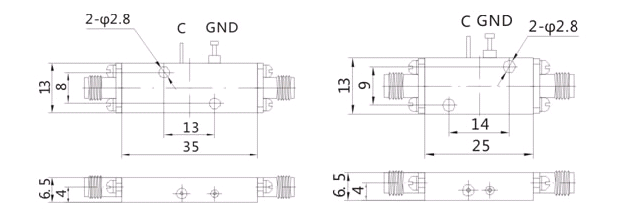

Reflective Analog Attenuator



Frequency
(GHz)

I.L (dB)
(Max)

VSWR
(Max)

Flatness(±B)

No Damage Power

outline

10dB

20dB

40dB

60dB

0.5-1

1.5

1.5

0.3

0.8

1.7

2.2

1w

AT1-A

1-2

0.8

1.5

0.3

0.8

1.5

1.6

1w

AT1-A

2-4

1.2

1.5

0.5

0.8

1.5

1.6

1w

AT1-A

4-8

1.8

1.7

0.3

0.8

1.5

1.6

1w

AT1-A

2-8

1.8

1.8

0.5

0.8

1.5

1.6

1w

AT1-A

8-12

2.2

1.8

0.7

1.0

1.5

1.6

1w

AT1-B

12-18

2.4

1.9

0.7

1.0

1.5

1.6

1w

AT1-B

8-18

2.4

1.9

0.7

1.0

1.5

1.6

1w

AT1-B

2-18

2.4

1.9

0.7

1.0

1.5

1.6

1w

AT1-B























For more information: contact us

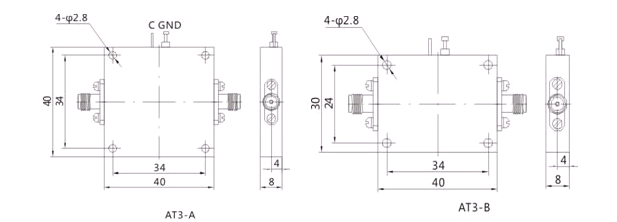

Absorptive Constant-Phase Analog Attenuator

Features: little phase change when in attenuation wide bandwidth removable connector



Frequency
(GHz)

I.L (dB)
(Max)

VSWR
(Max)

Phase Accuracy

Attenuation
(dB) (Min)

No Damage Power

Outline

2-6

4.0

2.0

±8°

32

0.1w

AT3-A

4-11

5.0

2.0

±8°

32

0.1w

AT3-B

6-18

6.0

2.0

±10°

32

0.1w

AT3-B



For more information: contact us

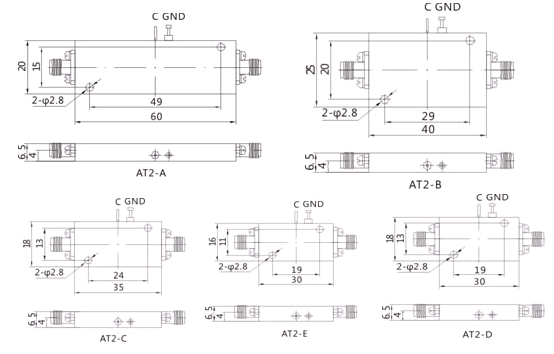

Absorptive Analog Attenuator



Frequency
(GHz)

I.L (dB)

(Max)

VSWR
(Max)

Flatness(±B) AT2-E

No Damage Power

outline

10dB

20dB

40dB

60dB

0.5-1

1.4

2.0

0.3

0.8

1.7

2.2

1w

AT2-A

1-2

1.3

1.5

0.3

0.8

1.5

1.6

1w

AT2-B

0.75-2.25

1.4

2.0

0.5

1.4

3

3.5

1w

AT2-B

2-4

1.5

1.5

0.5

0.8

1.5

1.6

1w

AT2-C

1.5-4.5

1.6

2.0

0.5

1.4

3

3.5

1w

AT2-C

2.6-5.4

1.7

1.6

0.3

0.8

1.5

1.6

1w

AT2-D

2-6

1.8

2.1

0.5

1.4

3

3.5

1w

AT2-D

4-8

2.0

1.7

0.3

0.8

1.5

1.6

1w

AT2-E

3-9

2.1

2.2

0.5

1.4

3

3.5

1w

AT2-E

5-10

2.2

1.7

0.5

0.9

1.5

1.6

1w

AT2-E

3.75-11.25

2.3

2.2

0.7

1.4

3

3.5

1w

AT2-E

6-12

2.3

1.8

0.7

1

1.5

1.6

1w

AT2-E

4.5-13.5

2.4

2.2

0.9

1.5

3

3.5

1w

AT2-E

8-18

3

2

0.7

1

1.5

1.6

1w

AT2-E

6-18

3

2

0.9

1.5

3

3.5

1w

AT2-E

2-8

2.5

2

0.5

1

-

-

1w

AT2-E







































For more information: contact us

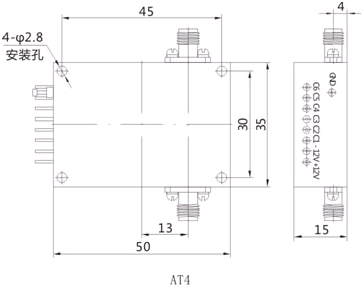

Digital Attenuator

Features: both insertion loss and attenuation are matching wide bandwidth multi-octave bandwidth removable connector.

Frequency
(GHz)

I.L (dB)
(Max)

VSWR
(Max)

Flatness(±B) AT2-E

No Damage Power

outline

10dB

20dB

40dB

60dB

0.5-1

1.4

2.0

0.3

0.8

1.7

2.2

1w

AT4

1-2

1.3

1.5

0.3

0.8

1.5

1.6

1w

AT4

0.75-2.25

1.4

2.0

0.5

1.4

3

3.5

1w

AT4

2-4

1.5

1.5

0.5

0.8

1.5

1.6

1w

AT4

1.5-4.5

1.6

2.0

0.5

1.4

3

3.5

1w

AT4

2.6-5.4

1.7

1.6

0.3

0.8

1.5

1.6

1w

AT4

2-6

1.8

2.1

0.5

1.4

3

3.5

1w

AT4

4-8

2.0

1.7

0.3

0.8

1.5

1.6

1w

AT4

3-9

2.1

2.2

0.5

1.4

3

3.5

1w

AT4

5-10

2.2

1.7

0.5

0.9

1.5

1.6

1w

AT4

3.75-11.25

2.3

2.2

0.7

1.4

3

3.5

1w

AT4

6-12

2.3

1.8

0.7

1

1.5

1.6

1w

AT4

4.5-13.5

2.4

2.2

0.9

1.5

3

3.5

1w

AT4

8-18

3

2

0.7

1

1.5

1.6

1w

AT4

6-18

3

2

0.9

1.5

3

3.5

1w

AT4



































For more information: contact us

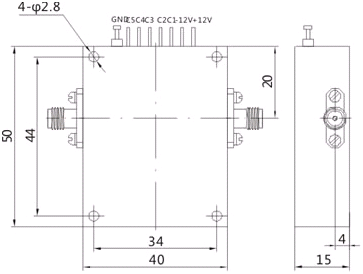

Constant-Phase Digital attenuator

Features: little change in phase when in attenuation matching type wide bandwidth removable connectors.



Frequency
(GHz)

I.L (dB)
(Max)

VSWR
(Max)

Phase Accuracy

Digit Capacity
BIT

Attenuation
(dB) (Min)

No Damage Power

Outline

2-6

4.0

2.0

±8°

5

32

0.1w

AT5

4-11

5.0

2.0

±8°

5

32

0.1w

AT5

6-18

6.0

2.0

±10°

5

32

0.1w

AT5

For more information: contact us

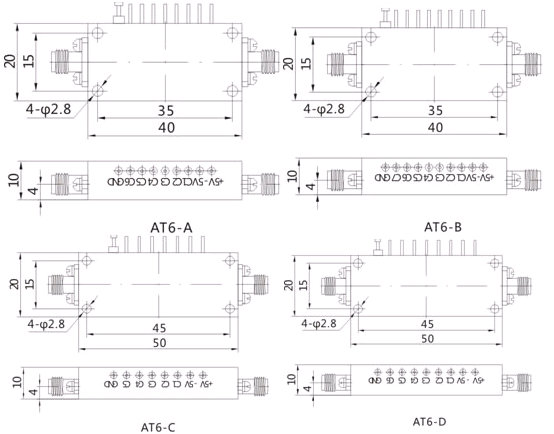

Switching High-Speed Digital Attenuator

Features: wide bandwidth high-speed stable temperature performance removable connectors.



Frequency
(GHz)

I.L (dB)
(Max)

VSWR
(Max)

Number of Bits

Attenuation
(dB)

Attenuation
Accuracy
(dB)

No Damage Power

Outline

0.5-2

3.5

1.8

6

31.5

±0.5

100w

AT6-A

0.5-2

4.5

1.8

7

63.5

±0.5

100w

AT6-B

2-4

3.5

1.8

6

31.5

±1

100w

AT6-A

2-4

4.5

1.8

7

63.5

±1

100w

AT6-B

2-6

5

1.8

7

63.5

±1

100w

AT6-B

0.5-8

4

2

6

31.5

±1

100w

AT6-A

4-8

4

1.8

6

31.5

±1.5

100w

AT6-A

8-12

4.5

1.8

6

31.5

±1.5

100w

AT6-A

8-12

7

1.8

7

63.5

±1.5

100w

AT6-B

6-18

3.5

1.6

5

15.5

±1.5

100w

AT6-C

8-18

10

2

5

31

±1.5

100w

AT6-C

8-18

12

2

6

63

±1.5

100w

AT6-D

For more information: contact us

News & Events

TECHNIWAVE sera présent au  SALON INTERNATIONAL DE L'AERONAUTIQUE ET DE L'ESPACE

17 -23 Juin 2019

Paris - Le Bourget

TECHNIWAVE a été sélectionné avec succès pour un projet collaboratif comprenant des entreprises et des centres de recherche de premier plan, tels que III-V lab, XLIM, EGIDE, CNRS, UMS, etc., pour un programme de 3 ans (VeGaN) dédié aux communications en bandes Ka, Q et E utilisant des technologies GaN avancées.

How to join us

TECHNIWAVE

ZA Le Clos de Villarceaux,
35, Rue de Montfort

78770 Thoiry
sales@techniwave.com
phone : +33 (0)1 34843743

Techniwave is looking for partners for the uncovered countries.
For information Contact Us

Version imprimable | Plan du site
Spécialiste RF HF hyperfréquence © 2019 Techniwave. All rights reserved.

Affichage WebAffichage Mobile

Déconnexion | Modifier

Appel
Email
