POWER DIVIDERS
TEHNIWAVE offers a wide range of power dividers:
- narrow band
- broad band
- 4 octave bandwidth
- octave bandwidth

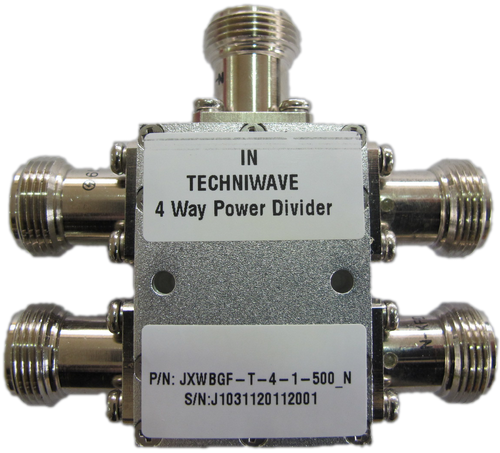

4-WAY POWER DIVIDER 1-500 MHz
|
Part Number |
Description |
Freq.Range |
Insertion |
Isolation |
Amplitude |
Phase |
|
4-way* |
1-500 MHz |
L: 0.5dB max |
L: 25dB min |
±0.4dB max |
±8° max |
|
|
M: 0.6dB max |
M: 25dB min |
|||||
|
U: 0.6dB max |
U: 25dB min |
* Connectors: N-Female; Operating Temp.: -40°C ~ +80°C; Size: 32x44x22 mm
ULTRA BROADBAND POWER DIVIDER SERIES
|
Part Number |
Description |
Freq.Range |
Insertion Loss |
Isolation |
Input VSWR |
Output VSWR |
Amplitude Balance |
Phase Balance |
|
2-way |
1-18GHz |
1.60dB |
16dB |
1.6 |
1.6 |
±0.50dB |
±10° |
|
|
4-way |
1-18GHz |
2.90dB |
14dB |
1.8 |
1.6 |
±0.80dB |
±10° |
|
|
2-way |
2-18GHz |
1.20dB |
16dB |
1.5 |
1.5 |
±0.30dB |
±5° |
|
|
4-way |
2-18GHz |
2.20dB |
16dB |
1.65 |
1.6 |
±0.60dB |
±10° |
|
|
8-way |
2-18GHz |
3.50dB |
15dB |
1.85 |
1.6 |
±0.80dB |
±10° |
|
|
2-way |
1-12.4GHz |
1.50dB |
16dB |
1.45 |
1.35 |
±0.40dB |
±6° |
|
|
4-way |
1-12.4GHz |
2.80dB |
16dB |
1.6 |
1.35 |
±0.50dB |
±7° |
|
|
2-way |
0.5-6GHz |
0.80dB |
18dB |
1.4 |
1.3 |
±0.20dB |
±3° |
|
|
4-way |
0.5-6GHz |
1.80dB |
16dB |
1.6 |
1.5 |
±0.30dB |
±4° |
|
|
8-way |
0.5-6GHz |
2.80dB |
16dB |
1.6 |
1.5 |
±0.30dB |
±8° |
|
|
2-way |
1-8GHz |
1.20dB |
16dB |
1.4 |
1.35 |
±0.30dB |
±6° |
|
|
4-way |
1-8GHz |
2.20dB |
15dB |
1.5 |
1.4 |
±0.40dB |
±8° |
4 OCTAVE BANDWIDTH POWER DIVIDER SERIES
|
Part |
Description |
Freq.Range |
Insertion Loss |
Isolation |
Input VSWR |
Output VSWR |
Amplitude Balance |
Phase Balance |
|
|
2-way |
0.5-2.0GHz |
0.50dB |
20dB |
1.25 |
1.2 |
±0.20dB |
±2° |
|
|
4-way |
0.5-2.0GHz |
1.00dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±3° |
|
|
8-way |
0.5-2.0GHz |
1.50dB |
20dB |
1.4 |
1.3 |
±0.40dB |
±4° |
|
|
2-way |
0.8-2.5GHz |
0.40dB |
20dB |
1.3 |
1.2 |
±0.20dB |
±2° |
|
|
4-way |
0.8-2.5GHz |
0.70dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±6° |
|
|
8-way |
0.8-2.5GHz |
1.20dB |
20dB |
1.4 |
1.25 |
±0.50dB |
±8° |
|
|
16-way |
0.8-2.5GHz |
1.70dB |
18dB |
1.5 |
1.3 |
±0.40dB |
±8° |
|
|
2-way |
1.0-4.0GHz |
0.50dB |
20dB |
1.3 |
1.25 |
±0.30dB |
±2° |
|
|
4-way |
1.0-4.0GHz |
0.80dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±4° |
|
0.8-4.2GHz |
1.50dB |
20dB |
1.4 |
1.3 |
±0.40dB |
±4° |
||
|
|
2-way |
2.0-8.0GHz |
0.60dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±4° |
|
|
3-way |
2.0-8.0GHz |
1.30dB |
18dB |
1.4 |
1.3 |
±0.80dB |
- |
|
|
4-way |
2.0-8.0GHz |
1.20dB |
17dB |
1.4 |
1.35 |
±0.40dB |
±5° |
|
|
6-way |
2.0-8.0GHz |
1.60dB |
17dB |
1.4 |
1.3 |
±1.00dB |
±8° |
|
|
8-way |
2.0-8.0GHz |
1.80dB |
17dB |
1.65 |
1.35 |
±0.70dB |
±7° |
|
|
12-way |
2.0-8.0GHz |
2.20dB |
16dB |
1.6 |
1.4 |
±1.00dB |
±7° |
|
|
2-way |
4.0-18.0GHz |
0.80dB |
18dB |
1.5 |
1.5 |
±0.40dB |
±5° |
|
|
4-way |
4.0-18.0GHz |
1.60dB |
17dB |
1.6 |
1.5 |
±0.50dB |
±8° |
|
|
8-way |
4.0-18.0GHz |
2.50dB |
15dB |
1.8 |
1.5 |
±0.60dB |
±10° |
OCTAVE BANDWIDTH POWER DIVIDER SERIES
|
Part |
Description |
Freq.Range |
Insertion Loss |
Isolation |
Input VSWR |
Output VSWR |
Amplitude Balance |
Phase Balance |
|
|
2-way |
0.5-1GHz |
0.35dB |
20dB |
1.2 |
1.15 |
±0.20dB |
±2° |
|
4-way |
0.5-1GHz |
0.60dB |
20dB |
1.25 |
1.2 |
±0.30dB |
±3° |
|
|
2-way |
1-2GHz |
0.35dB |
20dB |
1.2 |
1.15 |
±0.20dB |
±2° |
|
|
4-way |
1-2GHz |
0.60dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±3° |
|
|
8-way |
1-2GHz |
1.00dB |
20dB |
1.3 |
1.2 |
±0.40dB |
±5° |
|
|
2-way |
2-4GHz |
0.35dB |
20dB |
1.25 |
1.2 |
±0.20dB |
±2° |
|
|
3-way |
2-4GHz |
0.60dB |
18dB |
1.3 |
1.3 |
±0.30dB |
- |
|
|
4-way |
2-4GHz |
0.60dB |
20dB |
1.3 |
1.2 |
±0.30dB |
±3° |
|
|
2-4GHz |
0.90dB |
20dB |
1.3 |
1.2 |
±0.40dB |
±5° |
||
|
2-way |
4-8GHz |
0.50dB |
20dB |
1.25 |
1.2 |
±0.30dB |
±3° |
|
|
4-way |
4-8GHz |
0.80dB |
20dB |
1.3 |
1.25 |
±0.30dB |
±3° |
|
|
8-way |
4-8GHz |
1.20dB |
18dB |
1.5 |
1.25 |
±0.40dB |
±4° |
|
|
2-way |
6-18GHz |
0.70dB |
18dB |
1.5 |
1.5 |
±0.40dB |
±5° |
|
|
3-way |
8-18GHz |
1.20dB |
18dB |
1.6 |
1.5 |
±0.60dB |
- |
|
|
4-way |
6-18GHz |
1.30dB |
18dB |
1.6 |
1.5 |
±0.50dB |
±8° |
|
|
8-way |
6-18GHz |
2.10dB |
17dB |
1.8 |
1.5 |
±0.80dB |
±10° |
|
|
12-way |
8-18GHz |
2.50dB |
14dB |
1.8 |
1.5 |
±1.00dB |
±10° |
For more information: contact us
CUSTOM POWER DIVIDERS

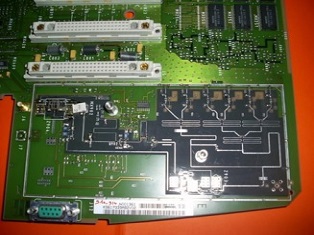

Example of an L-band Power Divider 1-to- 6 for base stations:
Example of a 32 ways Power Divider 2.5 GHz to 3.5GHz
For more information: contact us
