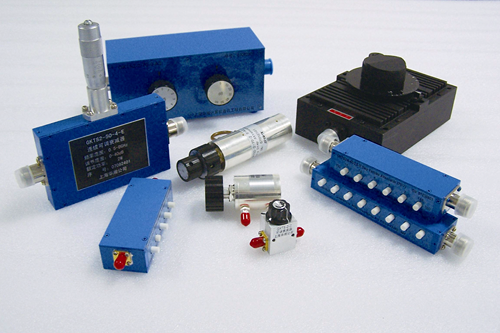

Variable / Programmable Attenuators
- DC-18GHz, 2-300W, 0-127dB
- Wide Choice of Attenuation & Frequency Ranges & Step Sizes
- Stable Attenuation Accuracy
- High reliability & Long Switch Life
- TTL\CMOS Interface and Driver Circuitry Available
- Custom Designs Available
Description
Variable/step attenuators can be used to adjust the power signal level continuously or by step within certain frequency range, they can also be used to adjust the test system's power level as inset attenuators, it is small with high accuracy and high stability etc.
Programmable attenuators are generally used to control the power level of microwave signals with TTL\CMOS driver control manner and designed for use in automatic test equipment (ATE) systems operating in the dc to 18 GHz frequency range.
Continuous Variable Attenuators...1W-100W DC-4GHz
|
Model |
Average Power (W) |
Frequency |
Attenuation |
MAX VSWR |
Insertion Loss(dB) |
Connector |
Pictures |
|
TWGKTS50 |
50 |
0.9-4 |
0-10 |
1.5 |
≤1.0 |
N |
|
|
TWGKTS75 |
75 |
0.9-4 |
0-15 |
1.5 |
≤1.0 |
N |
 |
|
TWGKTS100 |
100 |
0.9-4 |
0-20 |
1.5 |
≤1.0 |
N |
 |
|
TWGKTS300 |
300 |
0.9-4 |
0-25 |
1.5 |
≤1.0 |
N |
 |
|
TWGKTS2-50-4-E |
2 |
0.5-4 |
0-20 |
1.5 |
≤0.5 |
N(F,F) |
 |
|
TWGKTS-C |
1 |
DC-2.5 |
0-16 |
1.5 |
/ |
N,SMA |
 |
|
TWKTS-5 |
5 |
DC-2 |
10-60dB(1GHz) 10-50dB(1-2GHz) |
1.5 |
≤10 |
N,SMA |
 |
For more information: contact us
Rotary Step Attenuators...2W DC-12.4GHz
|
Model |
Average Power (W) |
Frequency Range (GHz) |
Attenuation Range(dB) |
MAX VSWR |
Insertion Loss(dB) |
Connector |
Pictures |
|
TWGKTS2-1-1-6-A1 |
2 |
DC-6 |
0-1/0.1 |
1.20-1.50 |
≤1.0 |
SMA(F,F) |
|
|
TWGKTS2-1-10-6-A1 |
2 |
DC-6 |
0-10/1 |
1.20-1.50 |
≤1.0 |
SMA(F,F) |
|
|
TWGKTS2-1-60-6-A1 |
2 |
DC-6 |
0-60/10 |
1.20-1.50 |
≤1.0 |
SMA(F,F) |
|
|
TWGKTS2-1-90-3-A1 |
2 |
DC-3 |
0-90/10 |
1.20-1.25 |
≤0.5 |
SMA(F,F) |
|
|
TWGKTS2-2-11-4.3-A2 |
2 |
DC-4.3 |
0-11/0.1 |
1.25-1.50 |
≤1.5 |
SMA(F,F) |
 |
|
TWGKTS2-2-70-4.3-A2 |
2 |
DC-4.3 |
0-70/1 |
1.25-1.50 |
≤1.5 |
SMA(F,F) |
|
|
TWGKTS2-2-100-3-A2 |
2 |
DC-3 |
0-100/1 |
1.25-1.40 |
≤1.2 |
SMA(F,F) |
|
|
TWGKTS2-1-10-18-A5 |
2 |
DC-18 |
0-10/1 |
1.25-1.60 |
≤1.5 |
SMA(F,F) |
 |
|
TWGKTS2-1-80-18-A5 |
2 |
DC-18 |
0-80/10 |
1.25-1.60 |
≤1.5 |
SMA(F,F) |
For more information: contact us
Rotary Step Attenuators...2W DC-6GHz
|
Model |
Average |
Frequency |
Attenuation Range(dB) |
Max VSWR |
Insertion Loss(dB) |
Connector |
Pictures |
|
TWGKTS2-2-70-18-A6 |
2 |
DC-18 |
0-70/1 |
1.35-1.75 |
≤1.5 |
SMA(F,F) |
 |
|
TWGKTS2-2-99-18-A6 |
2 |
DC-18 |
0-99/1 |
1.35-1.75 |
≤1.5 |
SMA(F,F) |
|
|
TWGKTS2-2-70-18-A7 |
2 |
DC-18 |
0-70/1 |
1.35-1.75 |
≤1.5 |
SMA(F,F) |
|
|
TWGKTS2-2-99-18-A7 |
2 |
DC-18 |
0-99/1 |
1.35-1.75 |
≤1.5 |
SMA(F,F) |
|
|
TWGKTS2-2-11-6-A3 |
2 |
DC-6 |
0-11/0.1 |
1.20-1.60 |
≤1.8 |
N(F,F) |
|
|
TWGKTS2-2-70-6-A3 |
2 |
DC-6 |
0-70/1 |
1.20-1.60 |
≤1.8 |
N(F,F) |
|
|
TWGKTS2-2-100-3-A3 |
2 |
DC-3 |
0-100/1 |
1.20-1.60 |
≤1.2 |
N(F,F) |
|
|
TWGKTS2-3-71-3-A4 |
2 |
DC-6 |
0-71/0.1 |
1.25-1.80 |
≤2.2 |
N(F,F) |
|
|
TWGKTS2-3-101-3-A4 |
2 |
DC-3 |
0-101/0.1 |
1.25-1.60 |
≤1.6 |
N(F,F) |
|
|
TWGKTS2-2-90-4.3-A4 |
2 |
DC-4.3 |
0-90/1 |
1.5 |
≤1.5 |
N(F,F) |
|
|
TWGKTS2-2-90-6-A4 |
2 |
DC-6 |
0-90/1 |
1.6 |
≤1.5 |
N(F,F) |
For more information: contact us
Pushbutton Step Attenuators... 2W,5W,10W DC-3GHz
|
Model |
Average |
Frequency |
Attenuation Range(dB) |
Max VSWR |
Insertion Loss(dB) |
Connector |
Pictures |
|
TWGKTSxx-1-20-3-B |
2,5,10 |
DC-3 |
0-20/20 |
1.30 |
≤0.75 |
N,SMA |
|
|
TWGKTSxx-2-30-3-B |
2,5,10 |
DC-3 |
0-30/10 |
1.40 |
≤2.0 |
N,SMA |
|
|
TWGKTSxx-4-10-3-B |
2,5,10 |
DC-3 |
0-10/1 |
1.40-1.5 |
≤2.5 |
N,SMA |
|
|
TWGKTSxx-5-20-3-B |
2,5,10 |
DC-3 |
0-20/1 |
1.40-1.5 |
≤3.0 |
N,SMA |
 |
|
TWGKTSxx-5-30-3-B |
2,5,10 |
DC-3 |
0-30/1 |
1.40-1.5 |
≤3.0 |
N,SMA |
|
|
TWGKTSxx-6-40-3-B |
2,5,10 |
DC-3 |
0-40/1 |
1.40-1.5 |
≤3.0 |
N,SMA |
|
|
TWGKTSxx-8-10-1-B |
2,5,10 |
DC-1 |
0-10/0.1 |
1.4 |
≤1.5 |
N,SMA |
|
|
TWGKTSxx-8-60-3-B |
2,5,10 |
DC-3 |
0-60/1 |
1.40 |
≤2.5 |
N,SMA,BNC, F |
|
|
TWGKTSxx-8-70-3-B |
2,5,10 |
DC-3 |
0-70/1 |
1.4 |
≤3.5 |
N,SMA |
|
|
TWGKTSxx-8-90-3-B |
2,5,10 |
DC-3 |
0-90/1 |
1.4 |
≤3.5 |
N,SMA |
For more information: contact us
Programmable Attenuators...2W DC-18GHz
|
Model |
Average Power (W) |
Frequency |
Attenuation Range(dB) |
Max VSWR |
Insertion |
Connector |
Pictures |
|
TWGKTS-F Serial |
2 |
DC-3 |
127/1 |
≤1.45 |
≤4.50 |
SMA(F,F) |
 |
|
TWGKTS-FD Serial |
2 |
DC-3 |
127/1 |
≤1.45 |
≤4.50 |
SMA(F,F) |
 |
|
TWGKTS-FC Serial |
2 |
DC-3 |
127/1 |
≤1.45 |
≤4.50 |
SMA(F,F) |
|
|
TWGKTS-G Serial |
1 |
DC-5 |
15/1 |
≤1.45 |
≤4.50 |
SMA(F,F) |
|
|
1 |
DC-5 |
70/10 |
≤1.45 |
≤4.50 |
SMA(F,F) |
||
|
TWX371 Serial |
1 |
DC-18 |
11/1 |
≤1.75 |
0.6dB+ 0.09dB/GHz
|
SMA,N |
|
|
1 |
DC-18 |
70/10 |
≤1.75 |
0.6dB+ 0.09dB/GHz |
SMA,N |
||
|
1 |
DC-18 |
90/10 |
≤1.75 |
0.6dB+ 0.09dB/GHz |
SMA,N |
||
|
1 |
DC-18 |
110/10 |
≤1.75 |
0.6dB+ 0.09dB/GHz |
SMA,N |
For more information: contact us
Programmable Attenuators...2W-30W DC-3GHz
|
Model |
Average Power (W) |
Frequency |
Attenuation Range(dB) |
Max VSWR |
Insertion Loss(dB) |
Connector |
Pictures |
|
TWGKTS xx-4-10-1-D |
2,5,10 |
DC-1 |
0-10/1 |
≤1.5 |
≤1.5 |
N,SMA |
 |
|
TWGKTS xx-4-10-3-D |
2,5,10 |
2-3 |
0-10/1 |
≤1.5 |
≤2.5 |
N,SMA |
|
|
TWGKTS xx-4-10-0.1-D |
2,5,10 |
DC-0.1 |
0-10/1 |
≤1.5 |
≤0.5 |
N,SMA |
|
|
TWGKTS xx-6-40-1-D |
2,5,10 |
DC-1 |
0-40/1 |
≤1.5 |
≤3.0 |
N,SMA |
 |
|
TWGKTS xx-6-40-0.1-D |
30 |
DC-0.1 |
0-40/1 |
≤1.3 |
≤0.75 |
N,SMA |
|
|
TWGKTS xx-8-60-1-D |
2,5,10 |
DC-1 |
0-60/1 |
≤1.5 |
≤3.6 |
N,SMA |
 |
|
TWGKTS xx-8-60-0.1-D |
30 |
DC-0.1 |
0-60/1 |
≤1.3 |
≤1.0 |
N,SMA |
|
|
TWGKTS xx-8-90-3-D |
2,5,10 |
2-3 |
0-90/1 |
≤1.5 |
≤3.6 |
N,SMA |
|
|
TWGKTS xx-8-90-0.1-D |
30 |
DC-0.1 |
0-90/1 |
≤1.3 |
≤1.0 |
N,SMA |
|
|
TWGKTS30-10-50.1-0.03-D |
30 |
DC-0.03 |
50.1/0.1 |
≤1.3 |
≤0.5 |
N,SMA |
 |
|
TWGKTS10-10-50.1-0.03-D |
10 |
DC-0.03 |
50.1/0.1 |
≤1.3 |
≤1.0 |
N,SMA |
|
|
TWGKTS2-3-40-1-D(75) |
2 |
DC-1 |
40/10 |
≤1.25 |
≤1.0 |
N |
|
|
TWGKTS2-6-60-2.5-D-C |
2 |
1.6-2.5 |
60/1 |
≤1.5 |
≤1.5 |
SMA |
 |
|
TWGKTS5-5-31-TD |
5 |
2.010～2.025 |
31/1 |
/ |
/ |
SMA |
 |
For more information: contact us
