TECHNIWAVE designs and manufactures high performance microwave and  mm-wave Mixers and Multipliers for wide range of radiofrequency applications.

TECHNIWAVE has an extensive line of mixers and multipliers to cover any frequency band to 90 GHz to provide you the one most suitable for your application.

Special Function Miwers using integrated in-phase power dividers and quadrature couplers to enable IQ modulation and image/sideband suppression can be designed on request.

Multipliers Up to W-band are available for communication applications but also breakthrough technological innovation like detect hidden object for security or Internal defects inspection for reliability products.

·      High IP3 mixer

·      high image or OL rejection mixer

·       Harmonics mixer up to Ka-band

·       IQ direct mixer and modulator for Q, V, E and W-band applications

·       X9, X12 Multipliers up to W-band

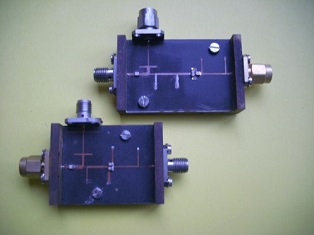

§ K Band Harmonic Mixer

·      Micro-strip and Schottky Diodes technologies

·       Operating Frequency : 14 – 24 GHz

·       Low insertion Loss

• RF frequency = 17.7 – 19.7 GHz, S-band IF frequency : 1 to 1.2 GHz
• Harmonic order: N=2
• Insertion Loss :7.5 to 8.5 dB
• Rejection LO/RF > 35 dB, OL/FI > 50 dB
• LO Power≥ +10 dBm
