TECHNIWAVE designs and manufactures custom RF hyperfrequency components and Microwave equipment for a wide range of markets and product applications (SATCOM, Point-to-Point, Point-to-Multipoint,………).

         ·        High performant Tx/Rx modules up to 90 GHz

          ·        Block up-converter for Ku, Ka and Q-band SATCOM links

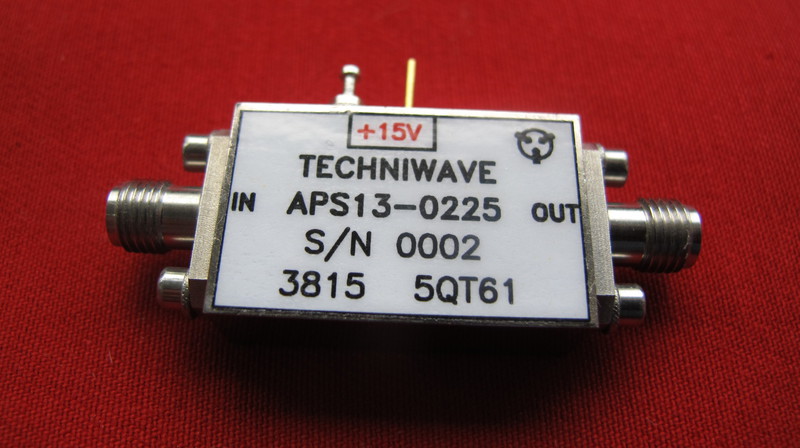

          ·        GaN PA amplifiers

Those compact and rugged modules suit the needs of wireless in millimeter frequency bands. They integrate SSPA using advanced GaN technologies and agile or fixed low noise sources.

§  E-band Rx / Tx Front end

· Direct IQ Modulation

· Ka Band Local Oscillators

· Integrated cavity duplexer

    P1dB Tx > 20 dBm, IP3 Tx > 30 dBm

    NF < 5 dB

    Phase Noise of Local Oscillators:

              -65 dBc/Hz @ 10 KHz,

              -95 dBc/Hz @ 100 KHz,

            -105 dBc/Hz @ 1 MHz

§  Ka-band Block up-converter

· Operating Frequency : 27.5 – 31.5 GHz

· Output Power : 8 W

· No ITAR restriction

    Input L-Band frequency : 850 MHz to 2150 MHz

    Output saturated power > 39 dBm

    Gain  > 60 dB

    Spurious @ Plinear < -58 dBc

    Output Phase Noise :

              -64 dBc/Hz @ 100 Hz,

              -76 dBc/Hz @ 1 KHz,

              -87 dBc/Hz @ 10 KHz

              -95 dBc/Hz @ 100 KHz

§  Q-band Rx / Tx Module

· Military and commercial applications

· Up and Down converters from L, S and C Bands to Q Band

· X-Band Local Oscillator

    Output power P1dB Tx > 1 W

    NF < 4.7 dB

    Gain Rx and Tx > 45 dB

    Image and LO Rejection > 29 dB

    AGC Dynamics in Rx Mode > 60 dB

    Power Control in Tx mode > 20 dB

    Phase Noise in Tx mode :

              -68 dBc/Hz @ 1 KHz,

              -77 dBc/Hz @ 10 KHz,

              -96 dBc/Hz @ 100 KHz,

            -121 dBc/Hz @ 1 MHz
